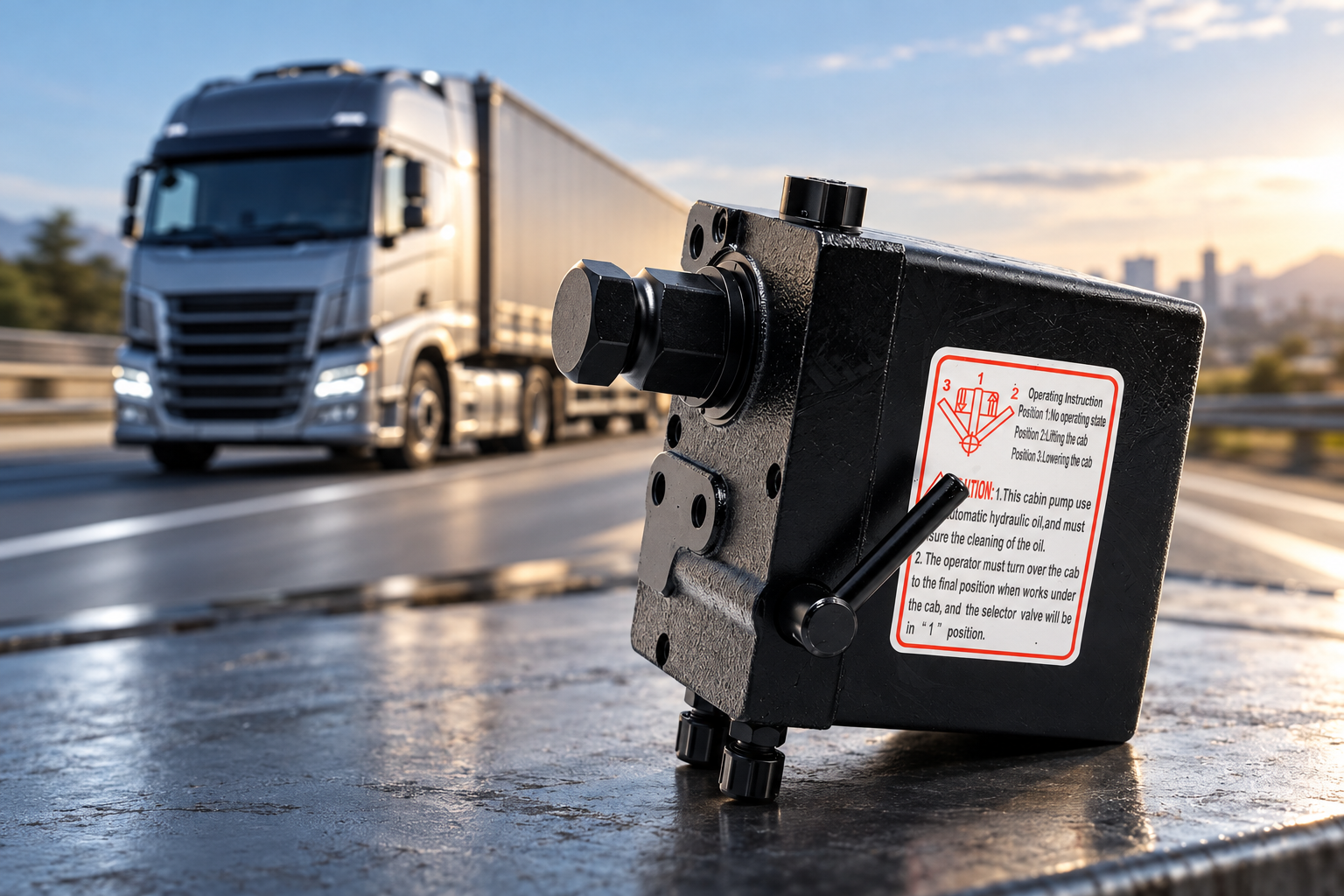

Behind every engine inspection on a cab-over truck sits a component that rarely gets a mention: the pump that lifts the cab out of the way. The tilt pump raises and lowers the cab on demand, giving technicians access to the engine, transmission and cooling system beneath.
A tilt pump is the hydraulic heart of a heavy-duty truck’s cab-tilting system. Its job is to generate and direct the pressure needed to raise and lower the cab in a controlled way, so that technicians can reach the engine, transmission, electrical systems, cooling components and other major assemblies underneath.
It is a modest-looking part with a large effect on how quickly, and how safely, a truck can be serviced.
WHERE THE TILT PUMP FITS
The pump works as part of a hydraulic circuit. A conventional cab-tilt system typically has one or more hydraulic tilting cylinders, hydraulic or mechanical latches that lock the cab down, and a separate pump with its own tank and directional valve, connected by high-pressure hoses. The pump may be operated by hand or electrically, and some designs combine cylinder and electric pump in a single integrated unit.
When the system is activated, the pump pressurises the hydraulic fluid and sends it to the cab-tilt cylinder. That force lifts the cab. Simplified, the path runs:
TILT PUMP → HYDRAULIC FLUID → VALVES AND HOSES → TILT CYLINDER → CAB
On the way down, the circuit regulates the flow of fluid so that the cab returns smoothly and safely to its driving position. Additional valves help control the speed of ascent and descent and guard against an uncontrolled fall if a hose fails.
WHY TRUCKS PUT THE TILT PUMP TO THE TEST
A cab-tilt pump spends most of its life idle, but the conditions around it are anything but gentle. Heavy-duty trucks operate under high loads, continuous vibration, temperature swings, long working hours and constant road exposure. The pump must still deliver consistent hydraulic performance when it is called upon, which may be after weeks of sitting through cold mornings and rough roads.
That puts a premium on strong construction, efficient hydraulic performance, leak-resistant operation and resistance to wear and vibration. Compatibility matters too. The pump has to suit the vehicle’s hydraulic system so that pressure, flow and cab movement are all correct.
THE UPTIME CONNECTION
Reliable cab tilting does more than save a technician a few minutes. It opens up the components beneath the cab for inspections, repairs, servicing and preventive maintenance, making each of them easier and faster. Over a year of workshop visits, that adds up to less service time and less unnecessary downtime.
For a fleet, the benefits are practical and cumulative: smoother, more controlled cab movement that supports safer tilting, dependable pressure delivery, easier access to everything underneath, and a system that works as intended when it is matched correctly to the vehicle’s hydraulic specifications.
WHEN THE TILT SYSTEM STARTS TO STRUGGLE
A tilt system tends to show trouble in how the cab behaves. Slow or jerky lifting, a cab that will not rise fully, one that does not hold its position, visible fluid leaks or a pump that runs without moving the cab are all reasons to investigate. On electric systems, a flat battery or a faulty motor can stop the system altogether. One manufacturer’s guidance notes that the system will not operate with a dead battery or a faulty tilt motor or pump.
These symptoms do not automatically point at the pump. Low fluid, air in the circuit, leaking hoses or seals and a worn cylinder can produce similar behaviour, so a qualified technician should establish the actual cause before anything is replaced. The question is not simply whether the pump is working. It is whether the whole circuit is delivering controlled movement.
SAFETY FIRST: THE PUMP IS NOT THE PROP
The most important point about a tilt system is also the simplest. Hydraulic pressure raises the cab, but it should never be the only thing holding it up. Britain’s Health and Safety Executive says it is aware of at least eight fatal accidents since 2019 involving work on incorrectly supported vehicles or cabs, and its guidance is never to work beneath a cab unless it is propped.
Safe-working guidance for heavy goods vehicles says much the same. Technicians should never go underneath a partially tilted cab, and should raise the cab until the tilt lock mechanism is engaged. Manufacturer guidance warns that a cab that has stopped mid-way will not have engaged its safety lock and could drop suddenly, and notes that interrupted tilting can damage an electrically driven system prematurely. Investigators in New South Wales, examining a mine loader cab that released without warning, urged workers to use secondary supports such as locking pins, support bars or timber chocks.
None of this reflects badly on the pump. It simply recognises that any hydraulic component can fail, and that a second, mechanical support is what keeps a technician safe.
THE RIGHT TILT PUMP FOR THE APPLICATION
Fitment matters. Tilt systems differ in design, from hand-operated pumps to electric units to cylinders with the pump built in, and some can tilt a cab through roughly 90 degrees, although most engine work needs far less. A replacement pump has to match the vehicle’s hydraulic specification, including pressure, flow and the way the cab is meant to move.
The right part is the one designed for the right application.
FROM ACCESS TO UPTIME
The tilt pump may sit quietly in the background, but its role is far from passive. It gives technicians the access they need, the control that keeps cab movement safe, and the reliability that keeps servicing efficient. When it works, nobody notices. When it does not, the whole workshop does.
For fleet maintenance teams, caring for the cab-tilt system is part of a larger principle: small hydraulic components can make a large difference to how quickly a truck gets back to work.
emBRWace Perspective
For a heavy-duty fleet, uptime is not decided only by the components that drive the truck. It is also decided by the ones that make the truck easier to service.
A reliable tilt pump supports safer, faster access to the engine and the systems around it, which is the foundation of efficient preventive maintenance.
Fleet uptime is built from hundreds of components working properly. The tilt pump is one of them.
Know Your Part
Tilt pump
The hydraulic pump that generates and directs the pressure needed to raise and lower a truck’s cab.
Cab-tilt cylinder
The hydraulic cylinder that converts fluid pressure from the pump into the force that lifts the cab.
Hydraulic circuit
The combination of fluid, pump, valves, hoses and cylinders that carries and controls hydraulic force.
Cab tilt lock
The hydraulic cylinder that converts fluid pressure from the pump into the force that lifts the cab.
Hydraulic circuit
The combination of fluid, pump, valves, hoses and cylinders that carries and controls hydraulic force.
Cab tilt lock
The mechanism that secures the cab in its driving position and engages when the cab is fully raised, and which should be backed by a mechanical support before anyone works underneath.
Thought to Take Away
Behind every open cab is a pump that lifts it, a lock that holds it and a prop that keeps people safe.
Behind every open cab is a pump that lifts it, a lock that holds it and a prop that keeps people safe.
Sources: Health and Safety Executive (Great Britain) guidance on working under cabs and vehicles; NSW Resources Regulator investigation report on a cab-tilt incident at a limestone mine; Isuzu cab-tilt operating guidance (RoadTrains Australia); HGV cab tilting and propping safe system of work; cab-tilt system documentation from Bell S.r.l. (IVECO) and tilt-system patent literature.
